What 70,000 Earthquake Waves Reveal About Earth's Hidden Layer

There's a layer of rock at the very bottom of Earth's mantle, right above the core. It's hot. It's under crushing pressure. And it's being twisted and squeezed like a wet towel. Scientists have known about this for a while. But they didn't know how much of it was deformed. Now they do. A team led by Jonathan Wolf at UC Berkeley used 70,000 earthquake measurements to map this hidden layer. The results came out April 6, 2026 in The Seismic Record. And here's the headline: two-thirds of the area they looked at shows clear signs of deformation. The main culprit? Old tectonic slabs that sank from the surface millions of years ago.

You Can't See It, But Earthquake Waves Can

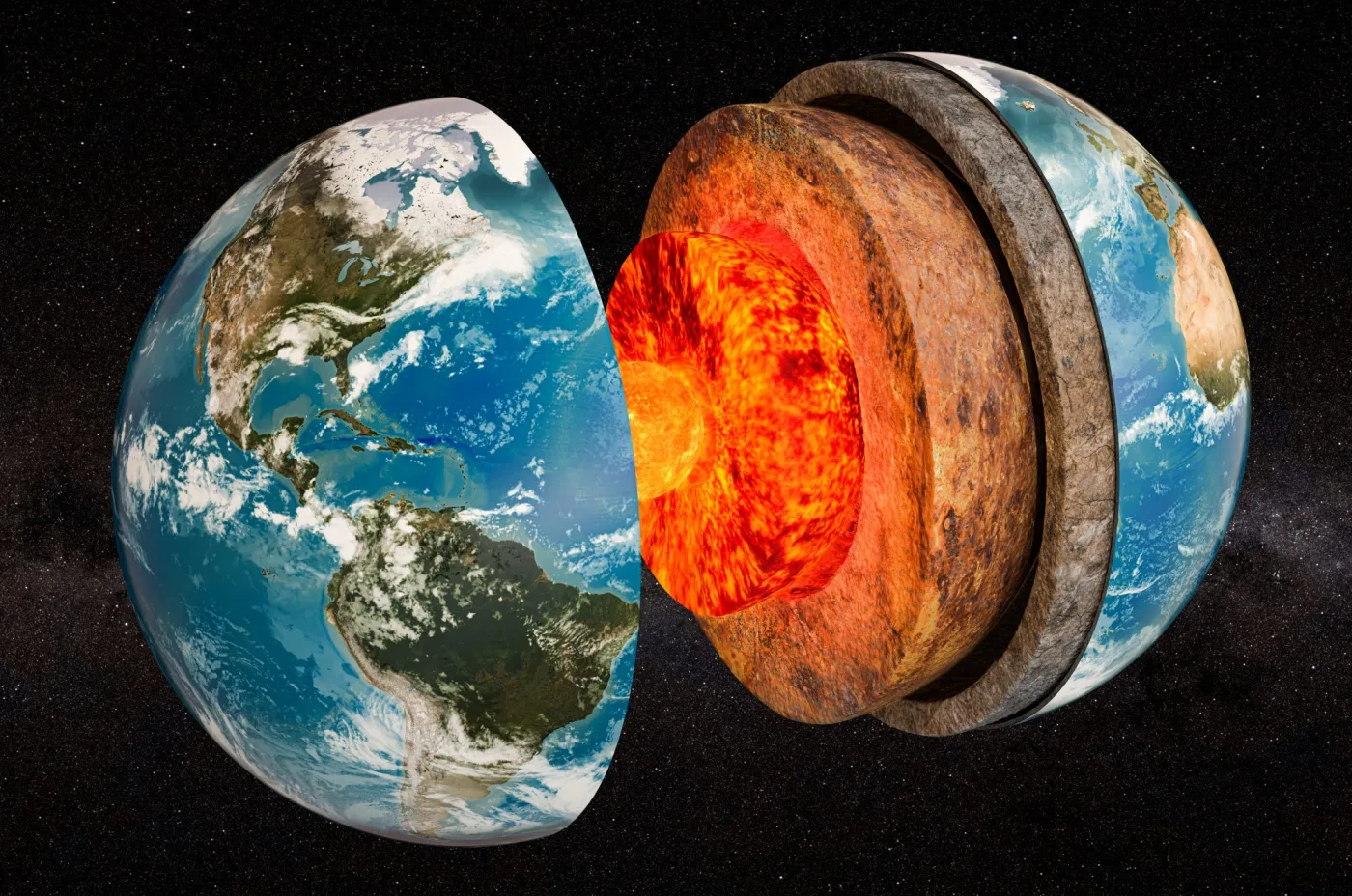

Nobody has ever seen the deep mantle. It's 2,900 km down. That's farther than any drill has ever reached. So how do scientists study it? They cheat. They use earthquakes. When a big quake hits, it sends waves rippling through the entire planet. Some of those waves travel from the quake, down through the mantle, into the core, then back up to a sensor on the other side of the world. Those waves carry information. They change speed depending on what kind of rock they pass through. And here's the really useful part: if the rock has been squeezed or stretched in one direction, the wave will vibrate faster in that direction. Slower in others. That's called seismic anisotropy. Think of it like a fingerprint of deformation.

The Clever Trick That Reveals Hidden Deformation

The team used a smart method. They looked at two types of earthquake waves — SKS and SKKS — that take slightly different paths through the deep mantle. Both waves start as one kind of vibration (P-waves) but switch to another kind (S-waves) when they leave the core. If the deep mantle has deformed rock, the two waves will split differently. That difference tells scientists whether the D″ layer — the lowest 200-300 km of the mantle — is anisotropic or not. The researchers processed 16 million seismograms from more than 4,700 earthquakes and 25,000 stations worldwide. That's a mountain of data. After filtering out noise and bad measurements, they ended up with 70,000 clean, reliable measurements covering nearly 75% of Earth's D″ layer. Nobody has ever done a study this big on deep mantle deformation.

Why Old Slabs Wrinkle the Deep Mantle

Here's what they found. The team compared their deformation map with known locations of ancient slab remnants — pieces of tectonic plates that subducted (sank) into the mantle millions of years ago. Think of the Pacific Ocean floor. It's constantly being pushed under continents. Those slabs sink. And sink. And sink. Eventually, after tens of millions of years, they hit the core-mantle boundary. But they don't just stop. They buckle. They fold. They spread out sideways. That extreme deformation leaves a mark. In regions where slab remnants were identified, 85% showed clear seismic anisotropy. In regions without slabs, only 63% did. The researchers ran a statistical test to be sure. They randomly rotated the slab locations 1,000 times and checked how often the alignment happened. The real alignment was way stronger than random chance. The connection is real.

Two-Thirds of the Deep Mantle Is Twisted

The results nearly triple the area where scientists have mapped deep mantle deformation using shear-wave splitting. Previous studies only looked at small patches. This study gives a near-global view. Anisotropy shows up strongest in the Pacific ring of fire region, beneath Central America, and under Southeast Asia — all places where slabs are actively sinking or have sunk in the past. The team did not find a strong link between deformation and the edges of the two giant blob-like structures in the deep mantle (called LLSVPs). That doesn't mean those regions aren't deformed. It just means the sampling was too sparse, or the deformation happens at scales too small for this study to see. But the big takeaway is clear: ancient slabs are wrinkling the deep mantle on a massive scale.

What Scientists Still Can't See

The study has limits. It can't tell you exactly which direction the deformation is pointing — only that it exists. It also can't tell the difference between deformation inside the slab itself versus the highly sheared mantle right next to it. The researchers admit that the giant low-velocity provinces (LLSVPs) remain poorly sampled. Those regions may have deformation too, but at smaller scales than this global study can resolve. Also, the slab locations come from tomographic models, which have their own uncertainties. Still, the statistical test is convincing. The team's next step is to use even denser seismic networks and higher-resolution models to map the orientation of the deformation. That could tell us whether the slabs are folding horizontally, shearing vertically, or doing something entirely unexpected. Either way, one thing is clear: the deep mantle is not a quiet, peaceful place. It's being actively wrinkled by the ghosts of ancient plates.

• Earthquake waves are X-rays for the planet — Scientists used 70,000 wave measurements to map deformation 2,900 km down.
• Old slabs drive deep deformation — Ancient tectonic plates sinking to the core-mantle boundary are the main cause of wrinkling in the D″ layer.
• The slab graveyard is still active — Even after millions of years, sunken slabs continue to squeeze and stretch the surrounding mantle.

"Our findings confirm the long-assumed link between surface subduction processes and lowermost mantle deformation via whole-mantle convection. Using a consistent methodology, we have tripled the D″ area where seismic anisotropy has been analyzed." — Wolf, Romanowicz, Garnero, Zhu & West, The Seismic Record, 2026.
